TPU film

Tuftane®

Tuftane® TPU Film Solutions

Permali manufactures a wide variety of Tuftane® branded TPU film (thermoplastic polyurethane) products which are used in applications needing a tough, highly elastic flexible film as part of the product design.

We offer an extensive range of products and solutions to suit your needs. You can browse our catalogue, get a quote or make a list of what you need, and one of our specialists will be in touch.

Sectors

Permali specialises in composites, mouldings, sandwich panel systems, fibre reinforced plastic (FRP) composite laminates and Tuftane® TPU (thermoplastic polyurethane) films.

We work closely with customers across a diverse range of sectors:

  • null

    Medical

    Blood plasma bags, hospital gowns, isolation fabrics, bio-medical devices.

  • null

    Construction

    Body armour, waterproof barrier fabrics and foul weather protective outerwear.

  • null

    Motorsport

    Fuel cells, fuel tank liners, drive belts, automotive components

  • null

    Textiles

    Laminates for office and domestic furniture fabrics to wet suits, sports equipment, PPE and life vests

    Tuftane®

    TPU films specified in many markets, applications and environments

    Tuftane® thermoplastic polyurethane films are specified in many markets, applications and environments: from artificial heart components, blood plasma bags and isolation tents in hospitals, to construction pipelining, aircraft furnishings, automotive parts and industrial valves. Tuftane® thermoplastic films come in a choice of over 30 grades, supplied in rolls up to 1.6 m wide, slit to width.

    Tuftane® TPU film grades are blended using either polyester or polyether aromatic PU polymer technologies. Standard and bespoke grades with speciality additives options are available to order. The Permali technical team works closely with customers to ensure that cost effective thermoplastic material solutions are provided with the exact additives, technical specifications and properties needed to meet their processing, product performance and regulatory requirements. Our TPU film grades vary from very soft and flexible to hard and stiff and are blended to match end use applications.

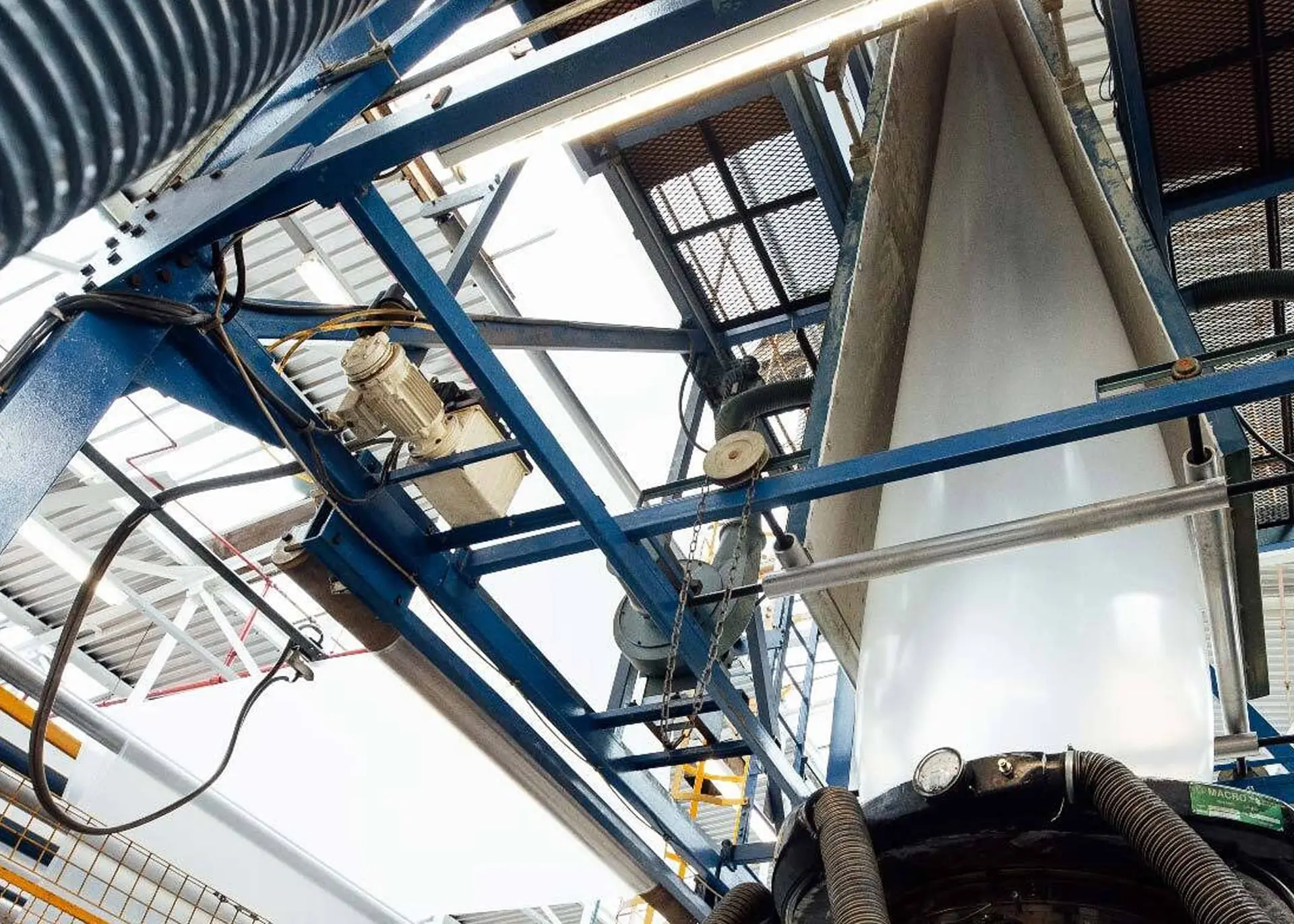

    All Tuftane® thermoplastic films are blown film extruded in-house, supplied to manufacturers on a roll, slit to width and rewound to order to optimise material utilisation and minimise scrap.

    TPU film
    Slide 1

    INNOVATION

    BULLETIN

    PERFORMANCE ENHANCING
    TUFTANE® TPU FILMS
    Slide 1

    INNOVATION

    BULLETIN

    PERFORMANCE ENHANCING
    TUFTANE® TPU FILMS

    Tuftane® Thermoplastic Polyurethane films are easy for a manufacturer to work with using traditional techniques for combining, converting and finishing of plastic and rubber materials.

    Processing & Finishing Options

    Thermoforming (Vacuum Forming)
    Adhesive Laminating / Bonding
    Heat Laminating / Bonding
    Flame Laminating / Bonding
    Solvent Bonding
    Cutting , Punching & Stamping
    Plastic Welding (RF, HF, Ultrasonic)
    Heat Sealing
    Embossing
    Printing

    Grade Selector

    Standard Tuftane® Range – Grade Selector

    Tuftane® film grades in polyester or polyether PU based formulations are available as standard, as listed in the downloadable grade selector table below:

    Tuftane® polyester TPU grades – offer high mechanical properties, abrasion, heat ageing and chemical resistance.

    Tuftane® polyether TPU grades – are ideal for applications where hydrolysis and microbial resistance along with high flexibility, even at very low temperatures, are critical performance attributes

    Key features and benefits:

    Variety of colours

    Films can be clear, translucent or opaque, tinted or solid colour matched, as required

    Property additive options

    High quality enhanced property additive options e.g. anti-static, high slip, fire resistance, anti-microbial

    Range of film hardness

    Range of film hardness (82 – 95 Shore A) and elongation performance from 350% up to 800%

    Film thickness

    Film Thickness from 25 microns (0.025 mm) to 750 microns (0.75 mm)

    Up to 650% elongation

    High elastic strain recovery up to 650% elongation

    Roll widths

    Roll widths from 38mm, supplied up to 1600mm (@ 25 microns) and 900mm (@750 microns)

    Excellent resistance

    Excellent abrasion wear, tear strength and puncture resistance, even at low temperatures

    Environmental resistance

    Outstanding environmental resistance to gases, ozone, water, oil and chemicals

    Compliant

    Excellent biocompatibility, compliant with ISO 10993

    Soft to the touch

    Soft texture

    Easy to weld

    Easy to weld

    Understanding Customer & Market Needs

    Permali’s continued success with Tuftane® thermoplastic film solutions and thermoplastic composite materials in highly competitive global markets has been achieved by a combination of maintaining quality assurance, supply reliability and cost control, along with remaining technically innovative and responsive to changing market trends, regulatory standards and customer needs.
