Construction
Solutions for Construction
Permali manufactures a wide variety of Tuftane® thermoplastic polyurethane (TPU) films , which are both flexible and elastomeric.
Tuftane® TPU films offer a unique combination of excellent abrasion wear, tear strength and puncture resistance, even at low temperatures and outstanding environmental resistance to gases, ozone, water, oil and chemicals. This makes them excellent, tough, thin membrane barrier coating and lining material solutions, which are used in the construction sector for building materials and to repair and refurbish installed underground pipe systems for utilities and industrial plants.
Tuftane® TPU films are based on either polyester or polyether aromatic PU polymer technologies, blended to provide the combination of physical and mechanical properties needed. The Permali technical team works closely with customers to ensure that cost effective Tuftane® film solutions are formulated to meet processing, product performance and regulatory requirements.
All Tuftane® TPU films for construction are blown film extruded in-house, supplied to manufacturers on a continuous roll, either in seamless tubular form for pipe relining, or slit to width and rewound to order as a single layer film for barrier sheeting.
Construction
Cured in Place Piping (CIPP) Relining

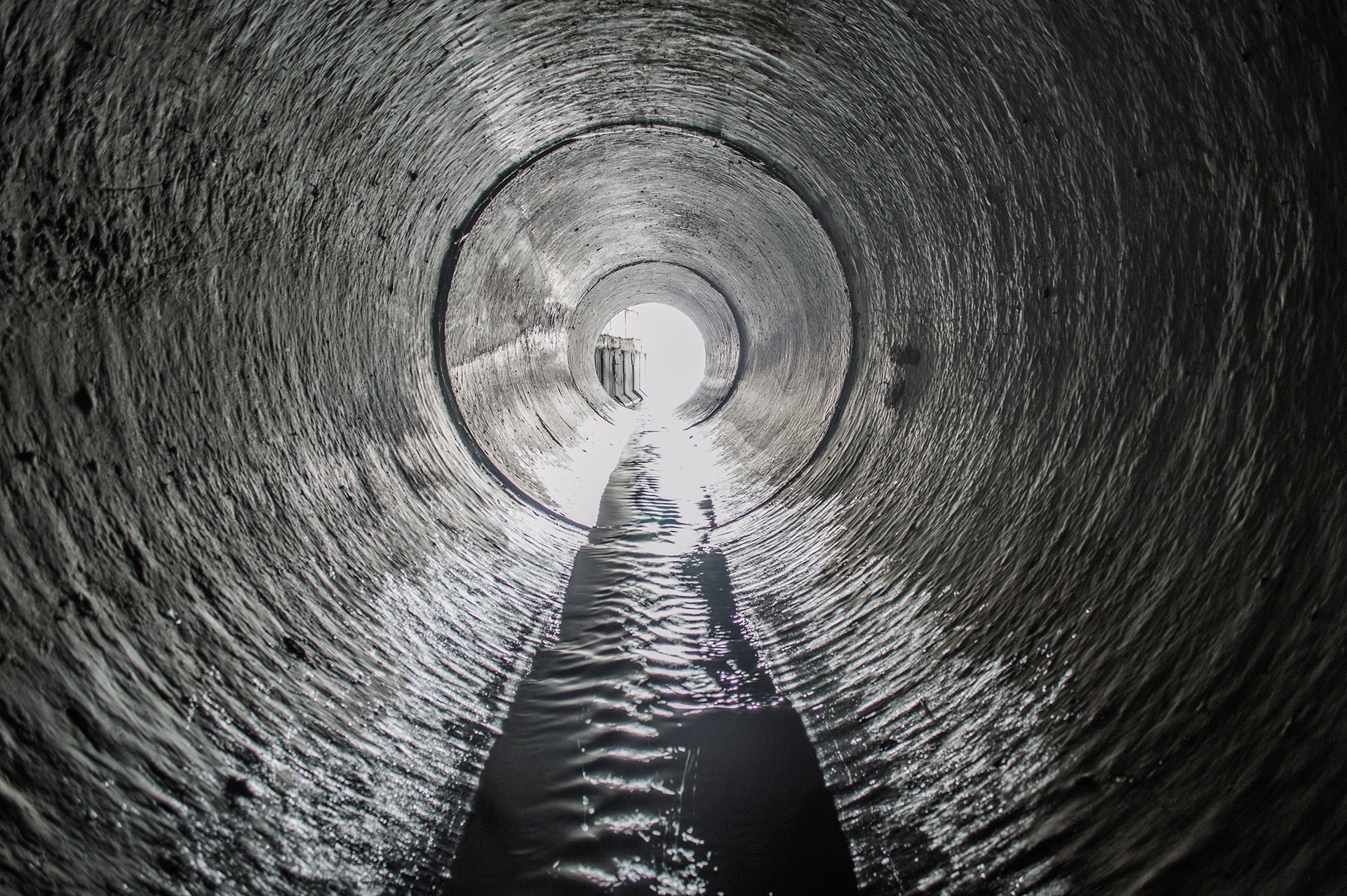

A major construction application for Tuftane® TPU films is in the cured-in-place piping (CIPP) process, used to repair and refurbish existing underground piping systems. CIPP is a widely used ‘trenchless’ method of adding a joint free, seamless, new pipelining within an existing pipe, which can be as small as 100mm to over 1.5 metres in diameter.
Permali has been supplying leading installers of CIPP systems for over 15 years. Specially formulated Tuftane® polyurethane TPU film grades have proved to be the ideal, long term pipe coating solution for the CIPP process, which is used all over the world for relining drains, sewage, mains water, gas, industrial effluent and chemical pipelines.
The flexibility of the polyester Tuftane® film, being an elastomeric PU polymer product, makes it easy to handle, install and conforms to the shape of the inner wall of the pipe when in-situ. The exceptional tear, cut and puncture resistance, even at low temperatures, combined with outstanding chemical resistance to both liquids and gases, provide the properties required to reline virtually any piping system.
Construction
Highly Responsive Supplier
For automotive customers, being able to respond under pressure and reliably deliver orders on time has been a key reason that Permali has been able to maintain and grow its business in this very demanding sector, particularly motorsports, where every second counts.
Permali also has a proven track record in using its extensive R&D, materials testing, and design engineering expertise and manufacturing capabilities to deliver innovative advanced materials solutions to very tight project deadlines.
Rapid prototyping and ‘pilot scale’ manufacturing facilities enable bespoke new product development (NPD) prototypes to be tested and modified at pace, speeding up the NPD process for Permali customers.
Tuftane® TPU Product Range for CIPP Relining:
Film pipe liner thickness
From 25 microns (0.025 mm) to 750 microns (0.75 mm)
Roll Lengths
Continuous roll lengths
Range of film hardness
82 – 95 Shore A
Seamless tube format
In diameters from 50mm up to 1600mm (@ 25 microns) and 900mm (@750 microns)
Other Building & Construction Applications
Tuftane® TPU film products can also be used in other building and construction applications including:
Mould release liner for casting complex shaped concrete or gypsum structural sections
Building sheet lining
Waterproof membranes
Thermal membranes
